Unlocking the Secrets of Mayan Archaeology: The Role of LiDAR Technology

Tiny pulses of light from the sky are rewriting everything we thought we knew about the Maya.

Introduction

Hidden beneath the dense rain‑forest canopy of Mesoamerica lie countless temples, causeways, terraces, and reservoirs—silent witnesses to the ingenuity of the ancient Maya. For more than a century, reaching these ruins meant hacking through thick jungle or waiting for chance clearings. Today a technology called LiDAR (Light Detection and Ranging) is flipping that script. From aircraft and drones, laser pulses pierce the foliage, bounce off the ground, and return precise elevation data, allowing archaeologists to peel away vegetation digitally and reveal the man‑made landscape below. What they are finding is nothing short of breathtaking.

In this article we’ll explore how LiDAR works, walk through landmark discoveries and look ahead to what this “laser vision” means for research, preservation, and even your next trip to a Maya site.

---

LiDAR 101 — How Does It Work?

Imagine switching on a flashlight that blinks half a million times per second while a stopwatch records how long each flash takes to bounce back. Scale that up to an aircraft cruising 700 m above the jungle, swap the light for eye‑safe infrared lasers (most commonly at 1 064 nm or 1 550 nm wavelengths), and you have a modern LiDAR survey.

1. Scanning the Canopy
A spinning or oscillating mirror fans the beam into a swath up to 60° on either side of the flight path, painting the rainforest with millions of pulses. Differential GPS and an inertial measurement unit (IMU) log the platform’s exact position and attitude to centimetre precision.

2. Timing the Echoes
Each pulse can hit multiple targets—leaves, branches, rooftops, then soil—before fading. The sensor clocks these nanosecond‑scale intervals; multiplied by the speed of light they translate into precise distance measurements. Recording multiple returns per pulse is crucial in dense vegetation because the last return is usually the ground.

3. Building the Point Cloud
A single hour in the air can produce over a billion XYZ points with vertical accuracy of ±10–15 cm. Software then classifies each return (ground, low vegetation, high vegetation, building, water) based on slope, height, and neighbourhood patterns.

4. Revealing the Bare Earth
After non‑ground points are stripped away, the remaining cloud is converted into a Digital Terrain Model (DTM). Archaeologists apply hillshade, slope, and sky‑view‑factor renderings to make 20‑cm‑high terrace walls or abandoned causeways leap from the screen.

Why it matters: LiDAR delivers a wall‑to‑wall, foliage‑penetrating view of the landscape. Reservoir embankments, defensive ditches, even ancient raised‑field grids appear in minutes—features that decades of ground survey or high‑resolution satellites routinely miss.

Platforms & Progress: Early Maya missions used twin‑engine aircraft, but today VTOL drones map small sites at >150 pts/m², and NASA’s GEDI experiment shows that orbiting LiDAR can profile forests from the ISS—hinting at a future where entire countries are mapped without leaving the runway.

---

Case Studies: LiDAR in Action

1. The “Maya Megalopolis” of Guatemala (2018)

A joint team from Pacunam and the Universities of Tulane and Arizona scanned 2,100 km² of the northern Petén Basin. The resulting model revealed over 61,000 structures—an interconnected network of cities, causeways, fortifications, and terraced farms supporting an estimated 11 million people at the Maya Classic peak (c. 250–900 CE). Defensive earthworks around sites like El Mirador overturned the long‑held view of a largely peaceful lowland Maya.

Take‑away: LiDAR not only finds new buildings; it rewrites demographic and political history.

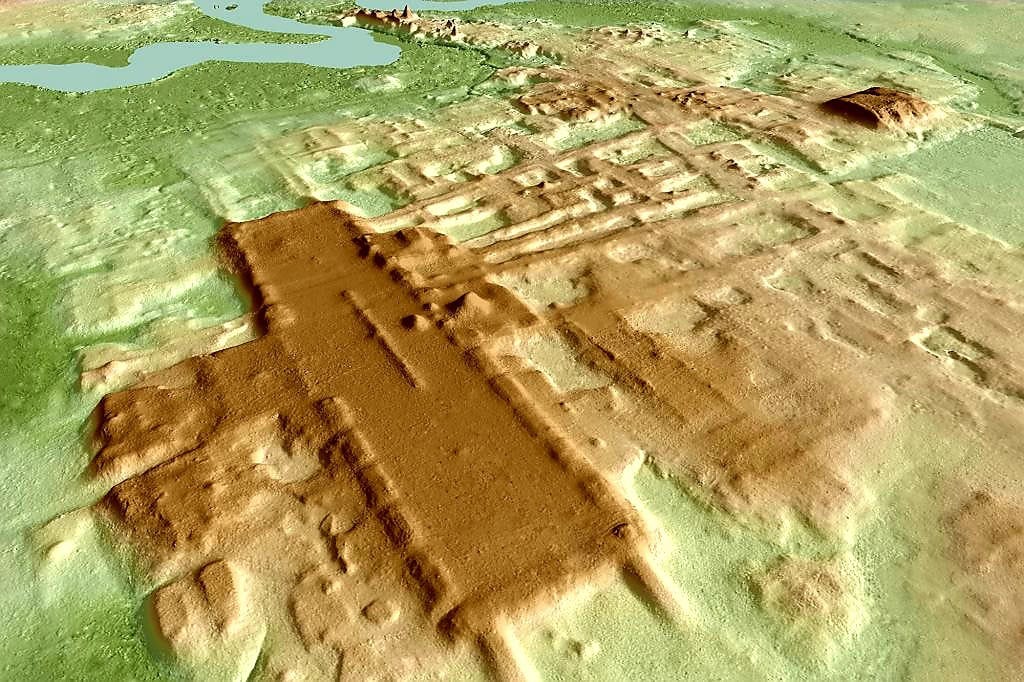

2. Aguada Fénix, Mexico (2020)

In Tabasco, anthropologist Takeshi Inomata used LiDAR to uncover a 1.4‑km‑long earthen platform dated to 1000 BCE, now considered the oldest and largest known Maya ceremonial construction. Because the complex sat under cow pastures with no monumental stone, it had eluded archaeologists for decades.

Take‑away: LiDAR excels at detecting low‑profile earthen architecture invisible to the naked eye.

3. Calakmul Biosphere Reserve Survey (2023)

The Mexican National Institute of Anthropology and History (INAH) scanned parts of the Calakmul Reserve, refined the mapping of the > 6,000 known structures and flagged additional reservoirs, sacbeob and defensive works. The findings highlight Calakmul’s role as a major regional hub and demonstrate sophisticated water‑management strategies crucial for modern conservation planning.

Take‑away: Even UNESCO‑listed sites still hold surprises—LiDAR is now a core tool for heritage managers.

---

Beyond Discovery: Preservation and Sustainable Tourism

• Monitoring Deforestation: Annual LiDAR flights can flag looting tunnels or illegal logging before on‑the‑ground patrols notice damage.
• Digital Twins: High‑resolution 3‑D models let conservators test stabilization techniques virtually, reducing interventions on fragile masonry.
• Visitor Management: When paired with VR/AR, LiDAR models offer immersive experiences that ease foot traffic on sensitive structures (imagine “walking” atop Calakmul’s ancient causeways from a museum in Campeche).

---

What’s Next? The LiDAR + AI Revolution

Machine‑learning algorithms are now trained to automatically classify architectural features within raw point clouds, accelerating analysis from months to hours. Upcoming satellite‑mounted LiDAR systems could scan entire regions without aircraft, while cheaper drone sensors will let local communities map and monitor heritage on their own terms.

Big picture: LiDAR is not replacing archaeologists—it’s empowering them with bigger questions: How did climate shifts reshape settlement? How were cities politically networked? Which routes funneled trade along the Yucatán?

---

Planning Your Own Maya Adventure

• Must‑See LiDAR Hotspots
  • Tikal National Park, Guatemala – Ask guides to point out causeways revealed in 2018 scans.
  Tikal – Temples and Pyramids in the Jungles of Guatemala
  • Calakmul, Mexico – New trails are opening to structures mapped in 2023. Hire certified guides to minimize ecological impact.
  • Caracol, Belize – Early LiDAR pioneer; look for LiDAR maps in the site museum.
• Travel Tips
  • Visit in the dry season (Nov–Apr) for clearer jungle views.
  • Pack binoculars—canopy platforms let you glimpse temples peeking above treetops.
  • Support community‑run lodges that fund site stewardship.

---

Conclusion

LiDAR has ushered in a golden age of Maya archaeology, illuminating hidden cities and complex landscapes once thought lost to time. As technology advances and datasets grow, each laser pulse adds another pixel to the grand mosaic of Maya civilization—offering scientists, students, and curious travelers alike an ever‑clearer window into the ingenuity of this ancient culture.

Ready to explore further? Subscribe to the AmazingTemples.com newsletter for monthly deep dives, field reports, and travel guides to the world’s most awe‑inspiring archaeological sites.

Spotlight on Recent LiDAR Breakthroughs (2024‑2025)

• Valeriana, Campeche (2024)
  6,500+ structures mapped when Tulane University’s Luke Auld‑Thomas re‑analyzed an open environmental LiDAR dataset. The sprawling city—hidden just off a modern highway—includes pyramids, ball courts, and a 47 mi² urban footprint, challenging long‑standing assumptions about population density in the central lowlands.
• Calakmul Fringe Settlements, Campeche (June 2024)
  A Mexican‑Slovenian‑US team combined airborne and ground LiDAR to reveal drainage canals, reservoirs, and an Early Classic ball court on the forested outskirts of Calakmul, refining models of water management at the end of the Classic period.
• Los Abuelos, Petén, Guatemala (May 2025)
  Drone‑borne LiDAR pinpointed a 16 km² ceremonial hub dating to 800‑500 BCE. Pyramids up to 33 m tall and a unique canal system make Los Abuelos one of the earliest monumental complexes in the Maya world.
  Los Abuelos – a 3,000-year-old Maya city emerges from the jungle
• Replica Citadel at Tikal (April 2025)
  High‑resolution scans around Tikal exposed a buried miniature of Teotihuacan’s citadel and avenues—evidence of foreign occupation before the A.D. 378 coup. The find underscores how LiDAR can spotlight subtle topographic signatures even within well‑studied sites.
  Teotihuacán Altar Unearthed at Tikal: A 2025 Maya–Mexico Sensation
• Open‑Data Surprise (Dec 2024)
  A forest‑carbon LiDAR survey released by Woodwell Climate Research inadvertently captured the plazas, reservoirs, and ball courts of an unrecorded Maya city—an eloquent argument for open data in heritage science.

---

Frequently Asked Questions (FAQ)

Q1. Is LiDAR safe for people and wildlife?
Yes. Modern airborne systems use eye‑safe infrared lasers (Class 1 or 1M) that pose no hazard to passengers, ground crews, or animals. Because the beam is both invisible and momentary, it does not disturb birds or sensitive rainforest fauna.

Q2. Can LiDAR really “see through” trees?
Not literally—but by capturing multiple returns from each pulse, software can separate foliage hits from the final ground return. In dense jungle, archaeologists often achieve one ground point every 0.5–1 m²—enough to outline terraces, walls, and reservoirs.

Q3. How accurate is the data?
With differential GPS and rigorous calibration, vertical accuracy in Maya surveys typically ranges from ±10–15 cm and horizontal accuracy from ±25–40 cm. Drone surveys over small sites can push ground‑point densities above 150 pts/m².

Q4. Where can I download Maya‑area LiDAR datasets?
• PACUNAM LiDAR Initiative (Guatemala): open tiles after a two‑year embargo.
• INAH GeoPortal (Mexico): environmental LiDAR for Campeche and Chiapas.
• Woodwell Climate Research Center: cross‑border carbon‑stock scans released in 2024.
Always check local heritage regulations before sharing or publishing derived models.

Q5. Does LiDAR replace excavation?
No. LiDAR excels at mapping, but it cannot date structures, identify construction phases, or recover artifacts. Ground‑truthing—surface survey, shovel tests, and full excavation—remains essential.

Q6. How expensive is a LiDAR survey?
Costs vary by platform and terrain. Aircraft missions across thousands of hectares may run US$200–$400 per km², while drone mapping of a modest 2 km² core zone can cost under US$15,000 (including processing). Prices continue to drop as sensors become lighter and software more automated.

Q7. What’s the future of orbital LiDAR?
NASA’s GEDI experiment aboard the ISS proved that space‑borne waveforms can resolve canopy height at 25 m footprints. Planned constellations aim for full‑waveform, 1 m grids—with machine‑learning classification on the ground—bringing continent‑scale archaeology within reach.

Citations & Further Reading

1. Canuto M. et al. 2018. PACUNAM LiDAR Initiative reveals 61,000 hidden structures in Petén, Guatemala. National Geographic, 1 Feb 2018.
2. Inomata T. et al. 2020. “Monumental Architecture at Aguada Fénix.” Nature 582: 530-533.
3. Auld-Thomas L. & Canuto M. 2024. “Running out of empty space: environmental LiDAR and the crowded ancient landscape of Campeche, Mexico.” Antiquity 98(389): 1-19.
4. Akers T. 2024. “LiDAR identifies lost settlements in the forests of Campeche.” The Art Newspaper, 26 Jun 2024.
5. Ruiz S. 2024. “From carbon stocks to Maya ruins: data sharing fosters discovery.” Woodwell Climate Research Center, 5 Dec 2024.
6. Kimball J. 2025. “Painted altar and scaled-down Teotihuacan citadel found at Tikal.” Brown University News, 8 Apr 2025.
7. AFP-Guatemala City. 2025. “Remains of Mayan city nearly 3,000 years old unearthed in Guatemala.” The Guardian, 30 May 2025.
8. Harris G. 2024. “Maya city Valeriana with pyramids, plazas and ball court discovered in Mexican jungle.” The Art Newspaper, 30 Oct 2024.
9. Kokalj Ž., Mast J. 2021. “Space LiDAR for archaeology? Re-analyzing GEDI data for detection of ancient Maya buildings.” JAS Reports 36: 102811.
10. Chase A. & Chase D. 2023. “Ethics, New Colonialism and LiDAR Data: A Decade of LiDAR in Maya Archaeology.” Journal of Computer Applications in Archaeology 7(1): 1-13.
